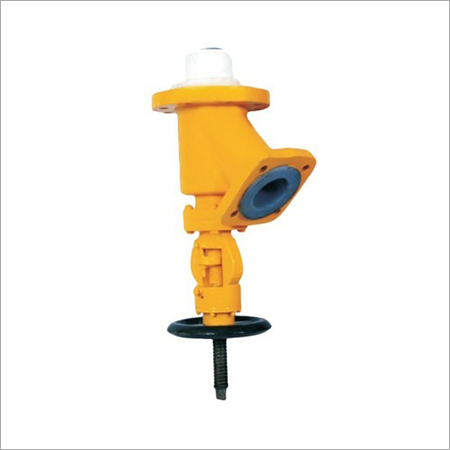

PTFE Lined Flush Bottom Valve

Next > >

Send Inquiry

Product Code : 06

Product Description

Ever since our establishment in 1991, we are actively indulged in manufacturing and supplying a qualitative range of industrial machinery and accessories. That being said, we offer PTFE Lined Flush Bottom Valve in different technical specifications at an economical price range. These valves are made of highest grade mild steel or cast iron and then coated with a layer of PTFE (Polytetrafluoroethylene) to protect them from corrosion and scratches. They are highly demanded among our clients for their numerous attributes and advantages that they offer like easy installation, dimensional stability, prolonged service life, etc. Offered PTFE Lined Flush Bottom Valve can be availed from us in different technical specifications in a stipulated time frame.

Technical Details :

Description	Moc
Body	Di / Astm A216 Gr Wcb / Cf8 / Cf8m
Spindle	Ms / Ss304 / Ss 316
Lining	Pfa / Fep / Pvdf / Hdpe / Pp
Lining Thickness	3mm Minimum
Flange Connection	Ansi B16.5,#150 / Customer Requirement
Spark Test	15 Kvdc
